  • HDPE Smooth Geomembrane Pond Liner
  • HDPE Smooth Geomembrane Pond Liner
HDPE Smooth Geomembrane Pond LinerHDPE Smooth Geomembrane Pond Liner

HDPE Smooth Geomembrane Pond Liner

  • Product Item : obor-HDPE smooth geomembrane
  • Category:HDPE Smooth Geomembrane
  • color:black
  • Product description:HDPE smooth geomembrane is also called smooth HDPE geomembrane,It is produced from best quality High Density Polyethylene (HDPE) material by film-blowing process, adding carbon black, antioxidant, ant
  • Inquiry

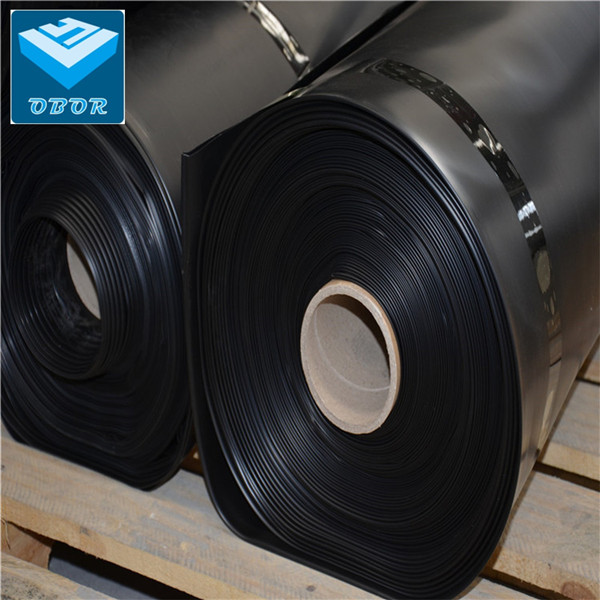

HDPE Smooth Geomembrane/Pond Liner

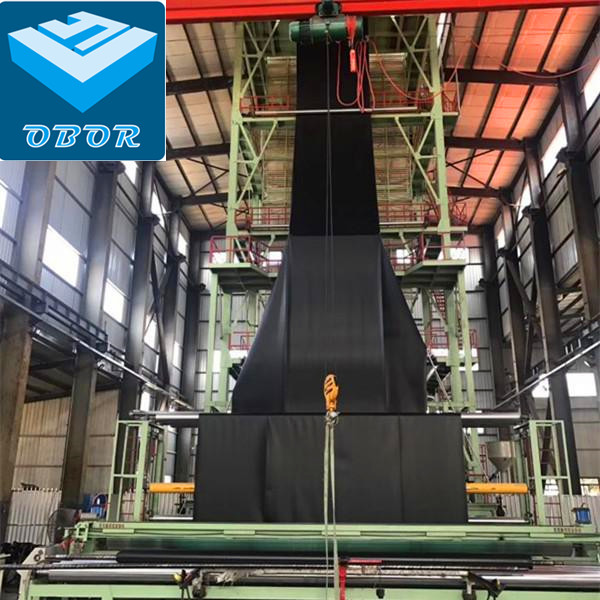

HDPE Smooth Geomembrane is produced from HDPE (high density polyethylene ) resin by film-blowing process, adding carbon black, antioxidant, anti-aging and UV-resistance component.


Basic Information

● Main Thickness: 0.3mm, 0.5mm,0.75mm,1.0mm,1.5mm,2.0mm, 2.5mm

● Main Width: 2.0m, 3.0m, 4.0m, 5.0m, 5.8m, 6.0m,7.0m, 8.0m

● Main Length: 50m/100m

● Certificates: CE, ISO9001, ISO14001

● For service temperature range:-70°C~110°C

● Corrosion resistance, aging resistance and excellent resistance to UV radiation


HDPE Geomembrane Specification(GRI GM13 ASTM Standard)

                   Spec

Properties

Test method

ASTM

GMS0.75

GMS1.0

GMS1.25

GMS1.5

GMS2.0

GMS2.5

Thickness

D5199

0.75mm

1.00mm

1.25mm

1.50mm

2.00mm

2.50mm

Density (≥  g/cc)

D1505

0.940

0.940

0.940

0.940

0.940

0.940

Tensile Properties

(Each direction) (≥)

•   yield strength

•   break strength

•   yield elongation

•   break elongation

D 6693

Type IV

11 kN/m

20kN/m

12%

700%

15 kN/m

27 kN/m

12%

700%

18 kN/m

33 kN/m

12%

700%

22 kN/m

40 kN/m

12%

700%

29 kN/m

53 kN/m

12%

700%

37kN/m

67kN/m

12%

700%

Tear Resistance (≥)

D 1004

93 N

125 N

156 N

187 N

249 N

311 N

Puncture Resistance (≥)

D 4833

240 N

320 N

400 N

480 N

640 N

800 N

Stress Crack Resistance (≥)

D 5397

300 hr.

300 hr.

300 hr.

300 hr.

300 hr.

300 hr.

Carbon Black Content

D 1603

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

Carbon Black Dispersion

D 5596

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Oxidative Induction Time (OIT) (≥)

(a)Standard OIT  or

(b)High Pressure OIT

D 3895

D 5885

100 min.

400 min.

100 min.

400 min.

100 min.

400 min.

100 min.

400 min.

100 min.

400 min.

100 min.

400 min.

Note(1): Carbon black dispersion (only near spherical agglomerates) for 10 different views:

9 in Categories 1 or 2 and 1 in Category 3

HDPE Smooth Geomembrane Application:

1.Fish farm pond

2.Landfill

3.Artificial river,Artificial lake

4.Mining

5.Biogas Digester

Releated Product----Geomembrane welding machine:
