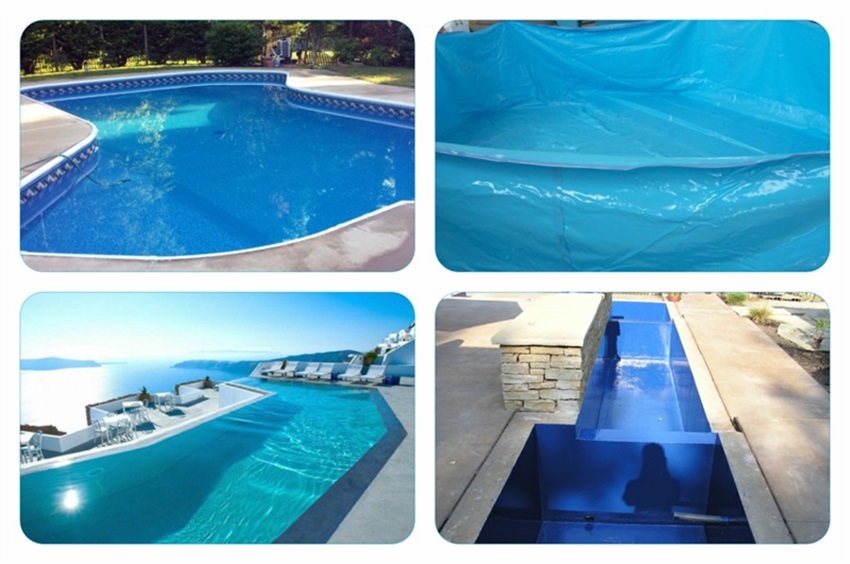

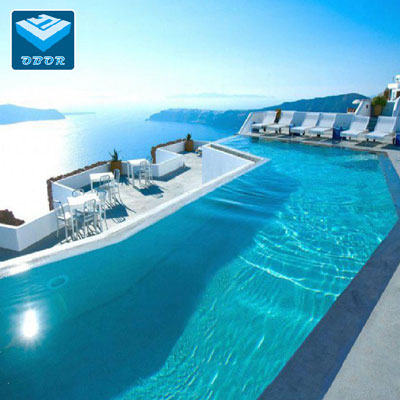

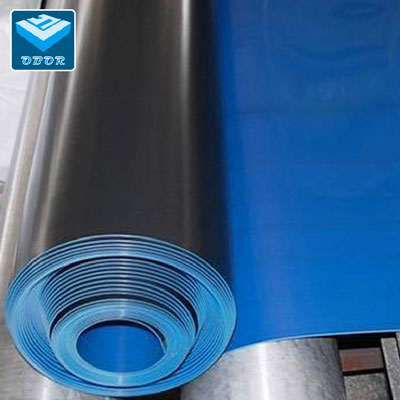

Blue Geomembrane Pool Liner

Product Item : OBOR-Blue Geomembrane
Category：Products
blue geomembrane
Product description：blue geomembrane,blue pool liner. Blue Geomembrane is one kind of HDPE geomembrane with blue colour
Inquiry

Blue Geomembrane Pool Liner

Blue Geomembrane is one kind of geomembrane with blue colour

Main component is high density polyethylene, plus carbon black, anti-aging, antioxidant and UV-resistance component; all products are based on American GRI standards and ASTM test standards.It meets the requirements of solid waste containment (such as landfill liners), mining and water containment applications.

1.It has excellent environmental stress crackingresistance and excellent chemical corrosion resistance.

2.Excellent chemical resistance.

3.Has a large operating temperature range and a long service life.

4.Hightensilestrengthandelongation

HDPE Blue Geomembrane Specification：(GRI GM13 ASTM Standard)

Spec Properties	Test method ASTM	GMS0.75	GMS1.0	GMS1.25	GMS1.5	GMS2.0	GMS2.5
Thickness	D5199	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm
Density (≥ g/cc)	D1505	0.940	0.940	0.940	0.940	0.940	0.940
Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation	D 6693 Type IV	11 kN/m 20kN/m 12% 700%	15 kN/m 27 kN/m 12% 700%	18 kN/m 33 kN/m 12% 700%	22 kN/m 40 kN/m 12% 700%	29 kN/m 53 kN/m 12% 700%	37kN/m 67kN/m 12% 700%
Tear Resistance (≥)	D 1004	93 N	125 N	156 N	187 N	249 N	311 N
Puncture Resistance (≥)	D 4833	240 N	320 N	400 N	480 N	640 N	800 N
Stress Crack Resistance (≥)	D 5397	300 hr.	300 hr.	300 hr.	300 hr.	300 hr.	300 hr.
Carbon Black Content	D 1603	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%
Carbon Black Dispersion	D 5596	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)
Oxidative Induction Time (OIT) (≥) (a)Standard OIT or (b)High Pressure OIT	D 3895 D 5885	100 min. 400 min.	100 min. 400 min.	100 min. 400 min.	100 min. 400 min.	100 min. 400 min.	100 min. 400 min.

Note(1): Carbon black dispersion (only near spherical agglomerates) for 10 different views:

9 in Categories 1 or 2 and 1 in Category 3

HDPE Geomembrane Application:

(1)Aquaculture:MiningWater Treatment SystemLandfill
Using the geomembrane anti-seepage feature; geomembrane liners can be used as fish ponds, shrimp pond, and other aquaculture.
(2)Landfill:
HDPE geomembrane is the most widely used in landfill anti-seepage engineering material,
The use of main parts of the bottom of the landfill liner, landfill sealing cover, etc.
(3)Water Treatment System :
HDPE geomembrane is applied to the adjustment of the power plant and sewage treatment plants pool;and a series of water treatment systems.
(4)Mining:
HDPE geomembrane suitable mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, storage area, etc
