Home >Products >HDPE Smooth Geomembrane >HDPE Smooth Geomembrane Supplier

  • HDPE Smooth Geomembrane Supplier
  • HDPE Smooth Geomembrane Supplier
HDPE Smooth Geomembrane Supplier HDPE Smooth Geomembrane Supplier

HDPE Smooth Geomembrane Supplier

  • Product Item : obor-HDPE geomembrane
  • Category:HDPE Smooth Geomembrane
  • Product description:We are professional Geomembrane Manufacturer,geomembrane supplier,geomembrane factory
  • Inquiry

HDPE Smooth Geomembrane Supplier

Shandong OBOR New materials company is a leading geomembrane manufacturer,we are specialized in kinds of geomembrane with over 30 years production experience.we own most advanced geomembrane production lines and professional Geomembrane Testing Equipments.our geomembrane has been distributed to more than 120 countries around the world.




OBOR --- A Professional geomembrane manufacturer in China
OBOR --- Owning the first 8-meter width geomembrane production line in China
OBOR --- Annual output ≥20,000 tons

OBOR --- Over 30 years production experience

OBOR --- Professional Geomembrane Testing Equipments & Strict quality control.
OBOR --- Has undertaken domestic and overseas projects for more than 30 years.

OBOR --- Good quality geomembrane approved by many Third-party testing organizations such as SGS, BV.

OBOR --- Products distributed to more than 120 countries around the world.

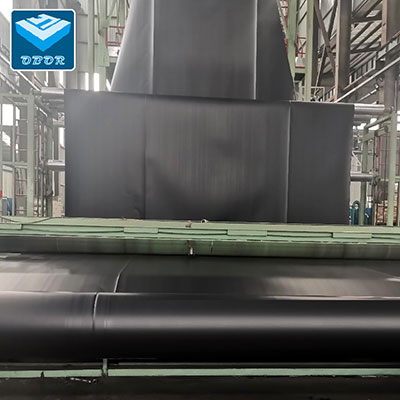

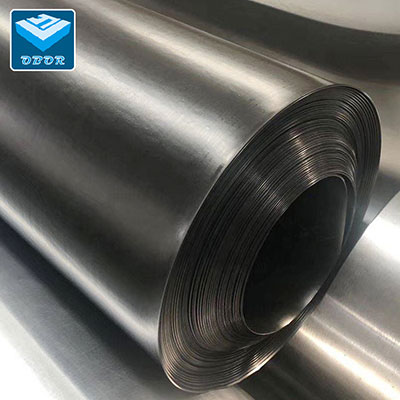

OBOR HDPE Geomembrane Photos


Basic Information

● Main Thickness: 0.3mm, 0.4mm,0.5mm,0.75mm,1.0mm,1.25mm,1.5mm,2.0mm,2.5mm,

3.0mm,4.0mm,5.0mm

● Main Width: 2.0m, 3.0m, 4.0m, 5.0m, 5.8m, 6.0m,7.0m, 8.0m,10m,12m

● Main Length: 50m/100m/150m/200m/250m or as requested.

Color:Black,white,blue,green

Optional surface:smooth surface,single surface textured,dual surfaces textured

● Certificate:CE,ISO9001,ISO14001,Bureau Veritas,SGS quality certificate,

Materials:We can produce HDPE/LDPE/LLDPE/PVC geomembrane


HDPE Smooth Geomembrane Testing Report,

Good Quality GRI GM13 ASTM standard,factory price


HDPE Smooth Geomembrane Specification(GRI GM13 ASTM Standard)

Properties

Test method

ASTM

GMS0.75

GMS1.0

GMS1.25

GMS1.5

GMS2.0

GMS2.5

Thickness

D5199

0.75mm

1.00mm

1.25mm

1.50mm

2.00mm

2.50mm

Density (≥  g/cc)

D1505

0.940

0.940

0.940

0.940

0.940

0.940

Tensile Properties(≥)

•   yield strength

•   break strength

•   yield elongation

•   break elongation

D 6693

Type IV


11kN/m

20kN/m

12%

700%


15kN/m

27kN/m

12%

700%


18kN/m

33kN/m

12%

700%


22kN/m

40kN/m

12%

700%


29kN/m

53kN/m

12%

700%


37kN/m

67kN/m

12%

700%

Tear Resistance (≥)

D 1004

93 N

125 N

156 N

187 N

249 N

311 N

Puncture Resistance (≥)

D 4833

240 N

320 N

400 N

480 N

640 N

800 N

Stress Crack Resistance (≥)

D 5397

300 hr.

300 hr.

300 hr.

300 hr.

300 hr.

300 hr.

Carbon Black Content

D 1603

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

Carbon Black Dispersion

D 5596

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Oxidative Induction Time (OIT) (≥)

(a)Standard OIT  or

(b)High Pressure OIT



D 3895

D 5885



100 min.

400 min.



100 min.

400 min.



100 min.

400 min.



100 min.

400 min.



100 min.

400 min.



100 min.

400 min.

Note(1): Carbon black dispersion (only near spherical agglomerates) for 10 different views:

9 in Categories 1 or 2 and 1 in Category 3

HDPE Smooth Geomembrane Product Features:

HDPE Smooth Geomembrane Application:

1.Fish farm pond,Shrimp pond,tank,dam etc.

2.Landfill

3.Artificial river,Artificial lake

4.Mining

5.Biogas Digester

6.Water Treatment System etc.

Releated Product----Geomembrane welding machine:
