HDPE Geomembrane Pond Liner Factory Manufacturer Supplier

Product Item : obor-HDPE geomembrane
Category：HDPE Geomembrane
Product description：We are professional Geomembrane Manufacturer,geomembrane supplier,geomembrane factory,Pond Liner Manufacturer,Pond Liner supplier,Pond Liner factory
Inquiry

HDPE Geomembrane Pond Liner Factory Manufacturer Supplier

Shandong OBOR New materials company is a leading geomembrane manufacturer,we are specialized in kinds of geomembrane with over 30 years production experience.Our geomembrane has been distributed to more than 120 countries around the world.

Our advantages:

OBOR --- A Professional geomembrane manufacturer in China
OBOR --- Owning the first 8-meter width geomembrane production line in China
OBOR --- Annual output ≥20,000 tons

OBOR --- Over 30 years production experience

OBOR --- Professional Geomembrane Testing Equipments & Strict quality control.
OBOR --- Has undertaken domestic and overseas projects for more than 30 years.

OBOR --- Good quality geomembrane approved by many Third-party testing organizations such as SGS, BV.

OBOR --- Products distributed to more than 120 countries around the world.

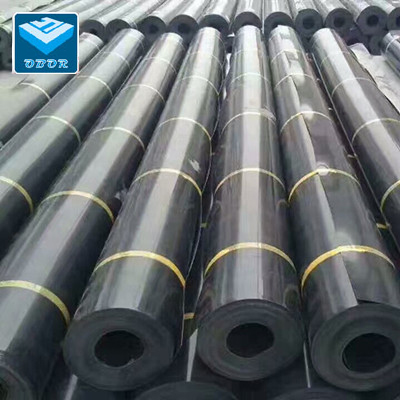

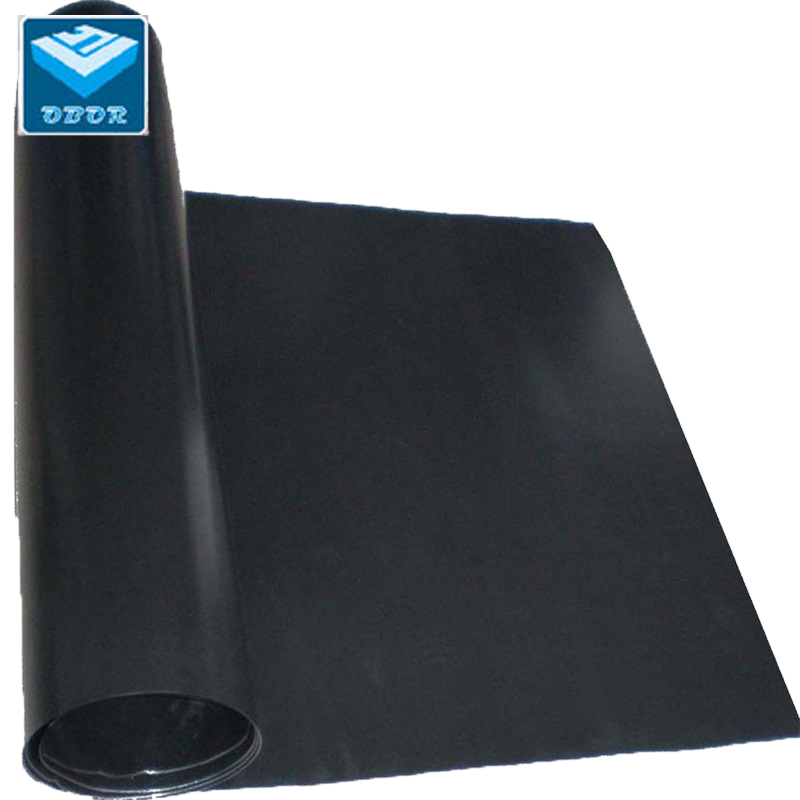

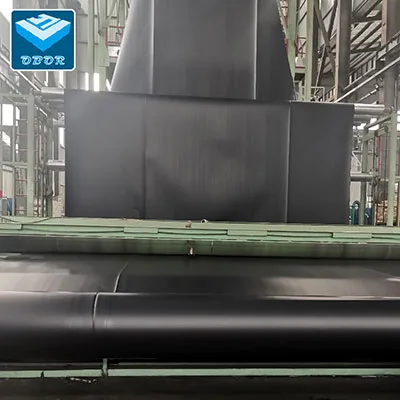

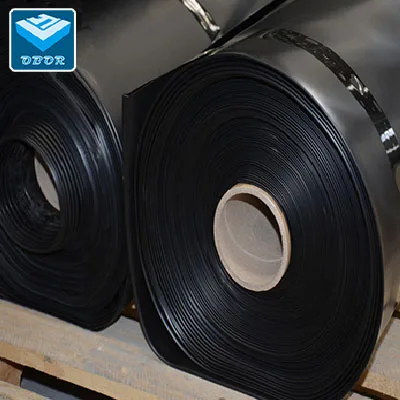

OBOR HDPE Geomembrane Photos

Basic Information

● Main Thickness: 0.3mm, 0.4mm,0.5mm,0.75mm,1.0mm,1.25mm,1.5mm,2.0mm,2.5mm,

3.0mm,4.0mm,5.0mm

● Main Width: 2.0m, 3.0m, 4.0m, 5.0m, 5.8m, 6.0m,7.0m, 8.0m,10m,12m

● Main Length: 50m/100m/150m/200m/250m or as requested.

● Color:Black,white,blue,green

● Optional surface:smooth surface,single surface textured,dual surfaces textured

● Certificate:CE,ISO9001,ISO14001,Bureau Veritas,SGS quality certificate,

● Materials:We can produce HDPE/LDPE/LLDPE/PVC geomembrane

HDPE Smooth Geomembrane Specification：(GRI GM13 ASTM Standard)

Properties	Test method ASTM	GMS0.75	GMS1.0	GMS1.25	GMS1.5	GMS2.0	GMS2.5
Thickness	D5199	0.75mm	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm
Density (≥ g/cc)	D1505	0.940	0.940	0.940	0.940	0.940	0.940
Tensile Properties(≥) • yield strength • break strength • yield elongation • break elongation	D 6693 Type IV	11kN/m 20kN/m 12% 700%	15kN/m 27kN/m 12% 700%	18kN/m 33kN/m 12% 700%	22kN/m 40kN/m 12% 700%	29kN/m 53kN/m 12% 700%	37kN/m 67kN/m 12% 700%
Tear Resistance (≥)	D 1004	93 N	125 N	156 N	187 N	249 N	311 N
Puncture Resistance (≥)	D 4833	240 N	320 N	400 N	480 N	640 N	800 N
Stress Crack Resistance (≥)	D 5397	300 hr.	300 hr.	300 hr.	300 hr.	300 hr.	300 hr.
Carbon Black Content	D 1603	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%	2.0-3.0%
Carbon Black Dispersion	D 5596	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)	Note(1)
Oxidative Induction Time (OIT) (≥) (a)Standard OIT or (b)High Pressure OIT	D 3895 D 5885	100 min. 400 min.	100 min. 400 min.	100 min. 400 min.	100 min. 400 min.	100 min. 400 min.	100 min. 400 min.
