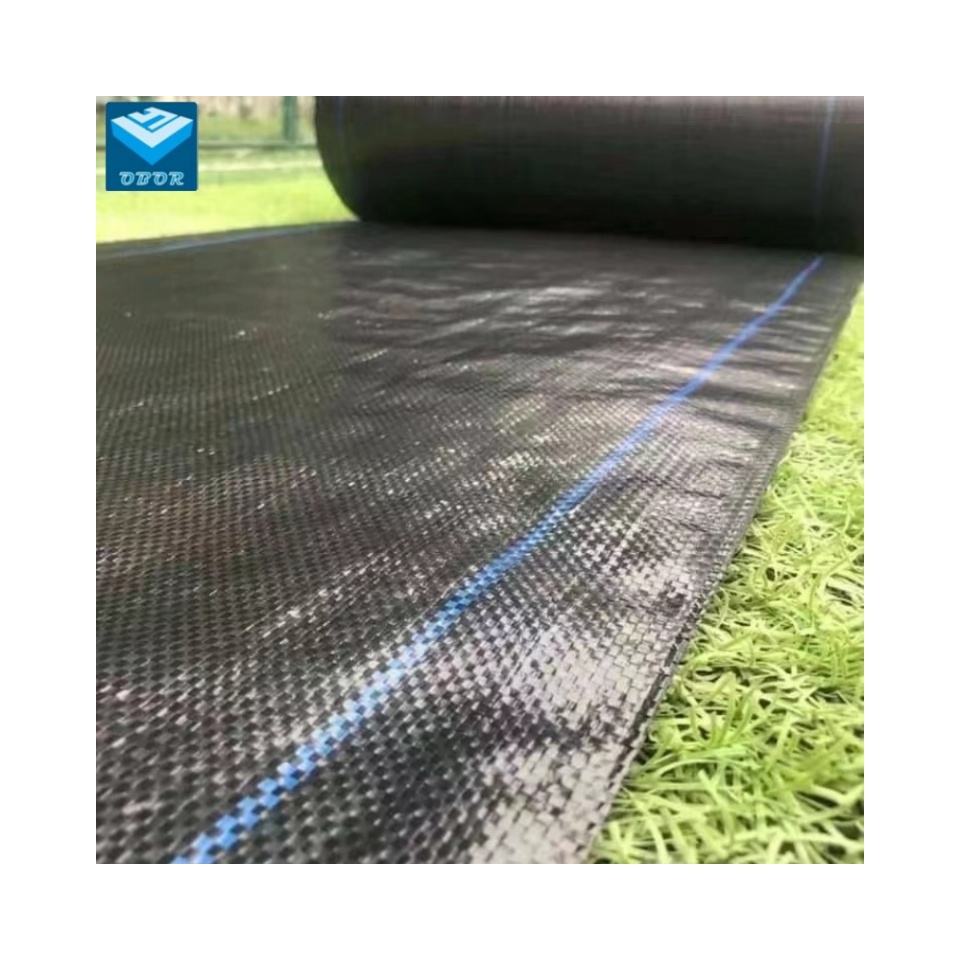

PP Woven Geotextile 80g 100g 110g Fabric for Weed Control Mat Ground Cover Fabric Landscape Fabric Weed Barrier

OBOR is a professional geosynthetic products company in Shandong province, China. The main products are Geomembrane, Nonwoven Geotextile, Geocell, Geogrid and other geosynthetic products.

We are specialized in providing professional geosynthetics solutions for our customers, our target is to supply professional products with the most reasonable prices to our customers around all the world, expect to build long term relationship with you.

Technical Data Sheet

Mass Weight g/m2	120	160	200	240	280	340	400
Break Strength KN/m≥(LD)	20	30	40	50	60	80	100
Break Strength KN/m≥(TD)	15	22	28	35	42	56	70
Break Elongation %≤(LD,TD)	25
Trapozoidal Tear Strength KN≥(LD)	0.3	0.45	0.5	0.6	0.75	1.0	1.2
Burst Strength KN≥	1.6	2.4	3.2	4.0	4.8	6.0	7.5
Vertical Permeability Coefficient cm/s	10-1-10-3
Sieve Size(O95.)mm	0.07-0.5
Variation%	±10

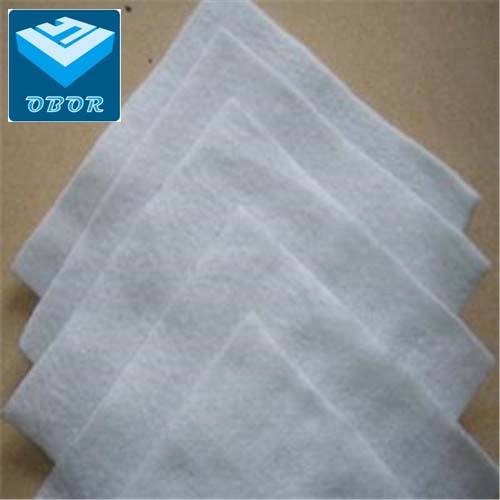

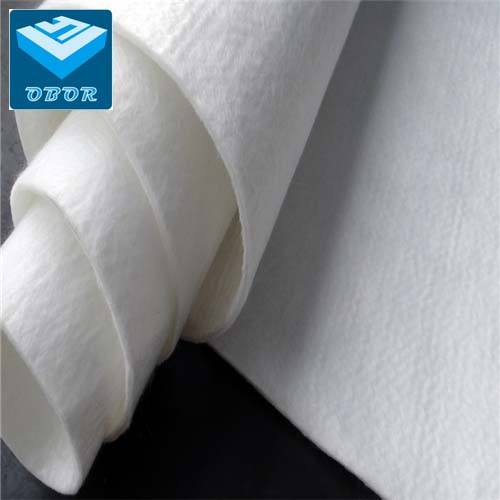

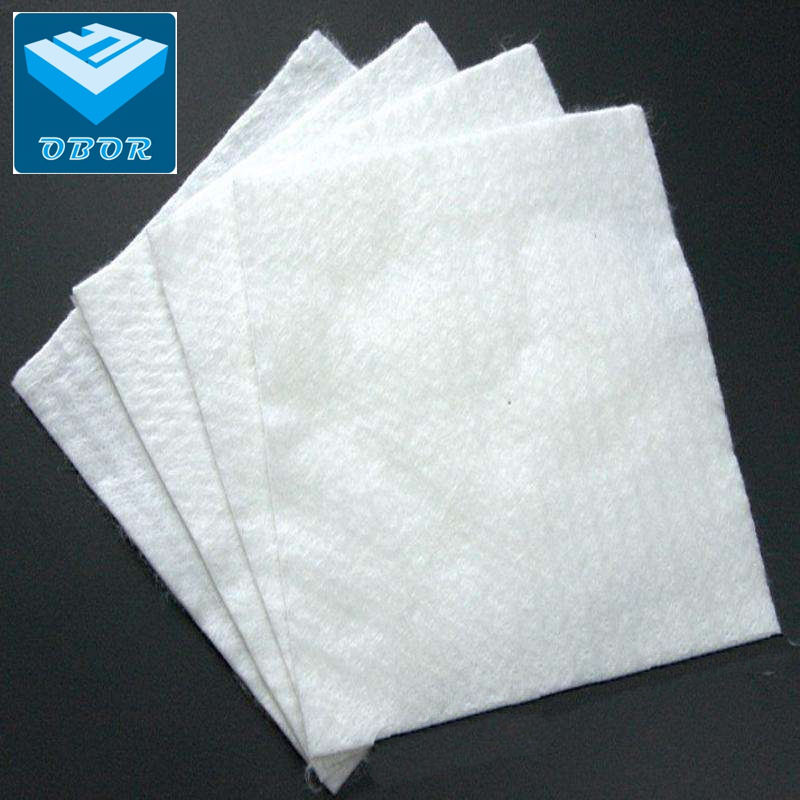

OBOR nonwoven geotextiles are used in a wide variety of applications including soil separation and drainage applications.
Lightweight nonwovens are predominantly used for subsurface drainage applications along highways, within embankments, under airfields, and athletic fields. For these drainage structures to be effective, they must have a properly designed protective filter. OBOR nonwoven geotextiles eliminates the challenge of determining the aggregate gradation required to match soil conditions, finding a convenient and economical source of a specific aggregate, transporting and placing graded aggregate, and assuring that the constructed in-place drainage system provides effective filter performance.
Heavyweight nonwovens are used in critical subsurface drainage systems, soil separation, permanent erosion control, and
geomembrane liner protection within landfills. These geotextiles provide the required strength and abrasion resistance to
withstand installation and application stresses to create an effective, long term drainage solution.

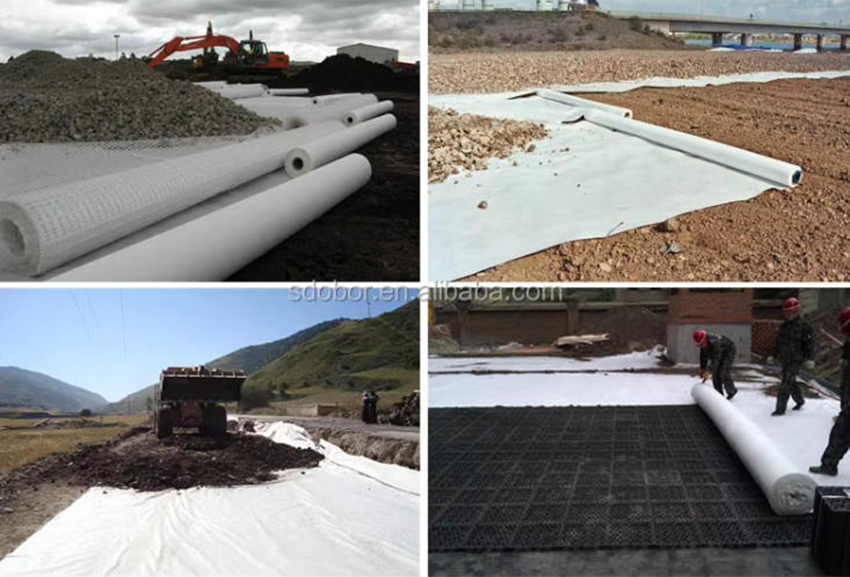

Non woven geotextile application:

Major functions: Separation, filtration, drainage, reinforcement, protection, and liquid barrier

1) Filtration
The filtration layer of the dykes, river canal, seacoast, concrete slope, retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.

2) Separation:
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings.

3 )Adding muscle:
The highway, railway, soil-stone dam, breakwater, airport, backfill soil of retaining wall, slope protection, etc in which distributes the earth stress, prevents the side-displacement of the earth body and improves the earth body stability.

4 )Protection
It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from being washed away.
